UCD3L Laptop Color Doppler Ultrasound Scanner

Description

UCD3L Laptop Color Doppler Ultrasound Scanner

Video：

Features:

1.15 inch LED medicinal monitor
2.Doppler,PW, CW,THI function
3.Trapezoid Imaging
4.PC Windows system
5.Rich measurement packages
6.Rechargeable battery (≥3H)
7.USB ports,HDMI,DICOM 3.0

Application:

Meet the inspection and diagnosis of primary hospitals in abdomen, obstetrics, gynecology, urinary system, small organs, superficial, vascular, pediatrics, neonatal, muscle, physical examination and other aspects.

Main specifications and system overview:
1.Operating system: Windows 10
2.Spectral Pulse Doppler (PW)
3.Directional Energy Doppler
4.Real-time triple synchronization
5.Spatial composite imaging
6.Tissue harmonic imaging
7.2B/4B imaging mode
8.System language supports: Chinese, English, French, Russian and Spanish, five languages
9.Monitor: ≥15 inches
10.Integrated clipboard: display the saved images at the bottom of the screen, which can be directly transferred or deleted
11.The system has the function of field upgrade
12.Preset conditions: For different inspections, preset the inspection conditions to optimize the image, reduce the adjustment during operation, and commonly required external adjustment and combined adjustment
13.Probe interface ≥ 1
14.With trapezoidal imaging function
15.With one-click intelligent optimization

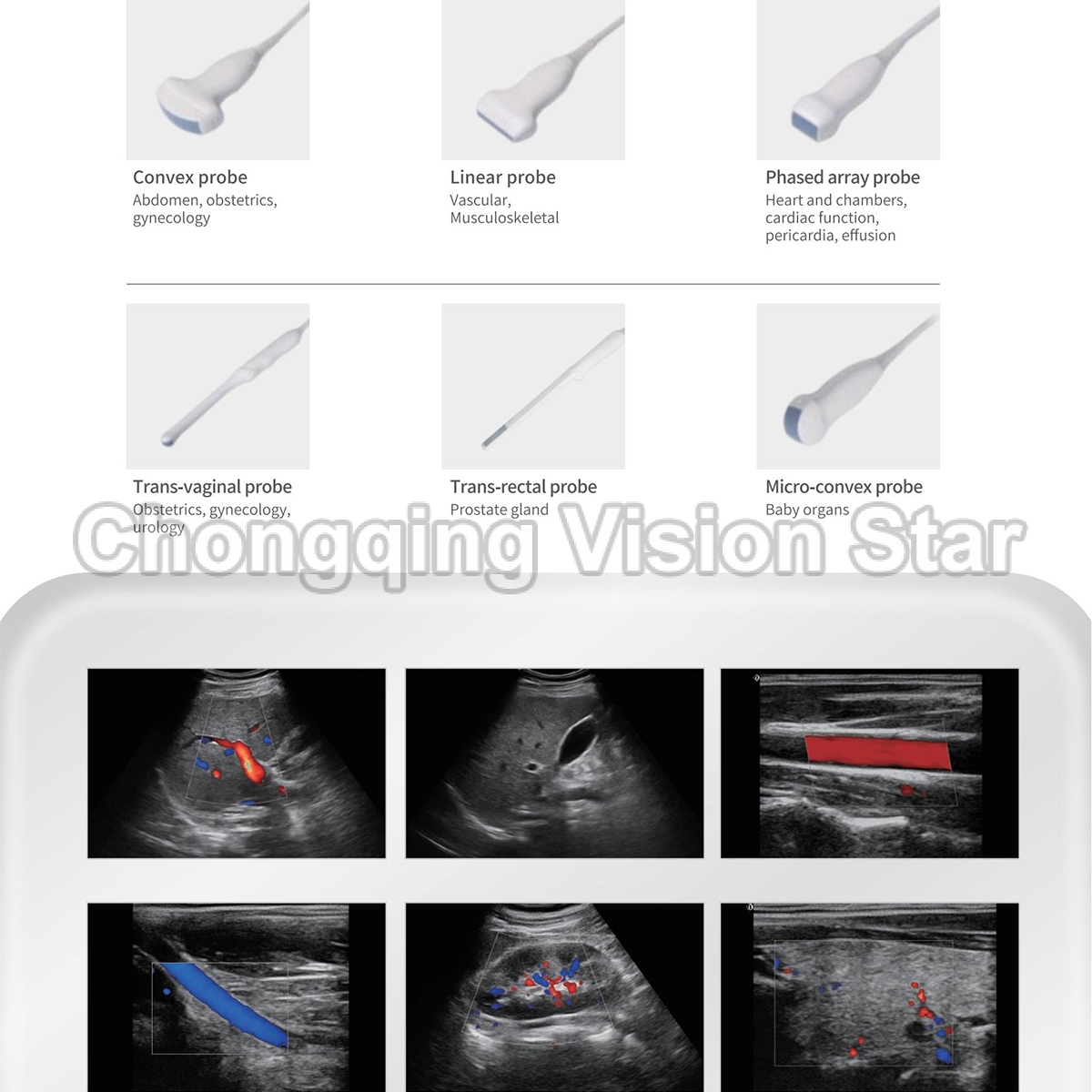

Optional Probe：
1.Convex probe: frequency 2.0MHz, 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.5MHz, H4.0MHz, H5.0MHz, eight-segment frequency conversion (depth 30-255mm)
2.Linear probe: Frequency: 6.0MHz, 7.5MHz, 8.5MHz, 10.0MHz, 12.0MHz, H10.0MHz, six-segment frequency conversion (depth 20-128mm)
3.Trans-vaginal probe: Frequency: 4.5MHz, 5.0MHz, 6.0MHz, 6.5MHz, 7.0MHz, 9.0MHz, H8.0MHz, seven-segment frequency conversion (depth 30-156mm)
4.Micro-convex probe (R15): frequency 4.5MHz, 5.0MHz, 6.0MHz, 6.5MHz, 7.0MHz, 9.0MHz, H8.0Mhz, seven-segment frequency conversion (depth 30-111mm)
5.Rectal probe: frequency 4.0MHz, 6.5MHz, 9.0MHz, H8.0Mhz, four-segment frequency conversion (depth 20-110mm)
6.Phased array probe: frequency 2.0MHz, 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 5.0MHz, H3.0MHz, H4.0MHz, eight-segment frequency conversion (depth 100-244mm)
7.L25 linear probe: frequency 6.0MHz, 7.5MHz, 8.5MHz, 10.0MHz, 12.0MHz, H10.0MHz, six-segment frequency conversion (depth 20-110mm)

Measurement and analysis functions:
1.Measurement items include distance, area, angle, time, slope, heart rate, speed, acceleration, blood flow path, blood flow spectrum trace, resistance index/pulsatility index and other professional measurements
2.According to the different applications, there are professional measurement packages;
3.Measurement line color and line type can be adjusted at will (including active color and finish color)
4.The display position and font size of the measurement results can be customized
5.Specialized software packages: Abdominal, Obstetrics, Urology, etc.
