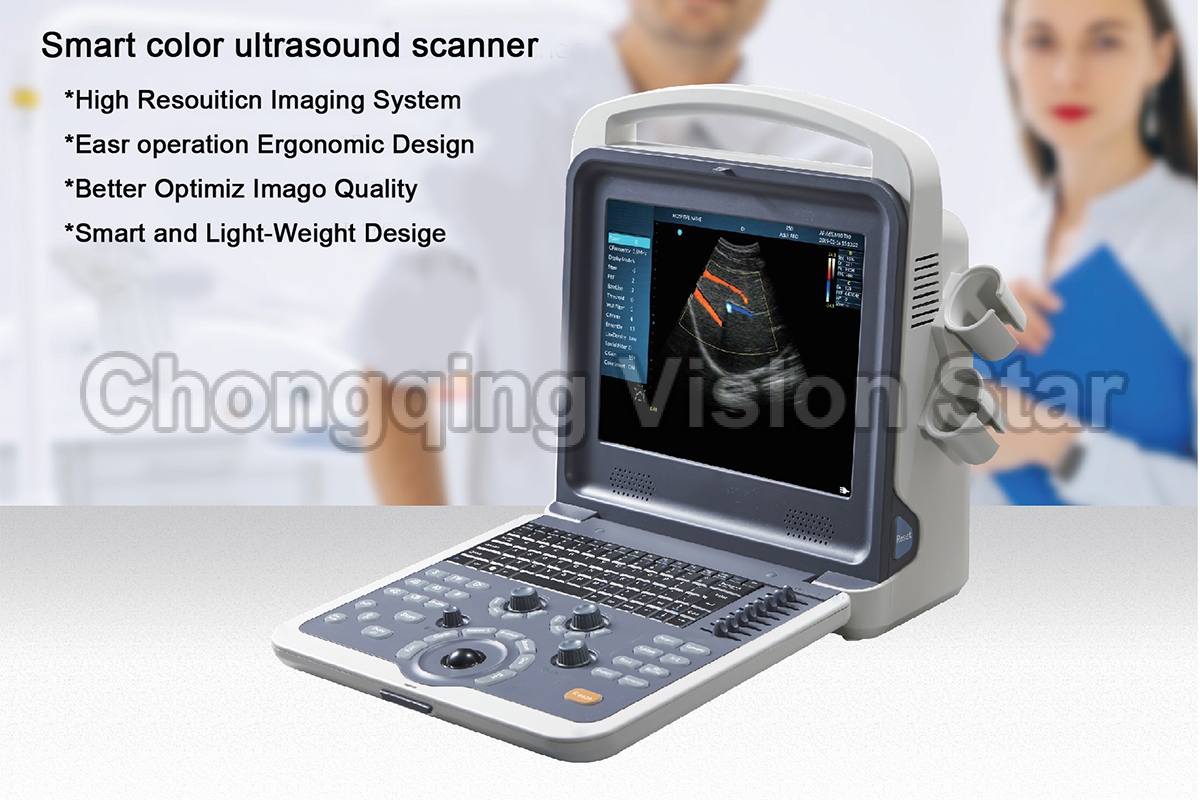

UCD01 Portable Color Doppler Ultrasound Scanner

UCD01 Portable Color Doppler Ultrasound Scanner

Feature:

1.High resolution medical LED monitor, 12 inch
2.Light-weight design, net-weight 6KG
3.Built-in Li-battery, stand up 2-3 hours
4.Built-in floating standard keyboard and backlit keyboard design
5.One-Key optimism function
6.Based on Linux platform, more stable
7.Crystal clear 2D image and sensitive Color Doppler blood flow imaging system
8.Signal processing: Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
9.Three languages Chinese, English and French to choose
10.The peripherals: Ethernet interface, 2 USB Ports, VGA interface, S-video interface, Remote interface, Video interface

Configuration:
1.Displaying mode: B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW
2.Signal processing: Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields
3.Image processing: THI, Smoothing function, Edge enhancement, One-key optimization, Image conversion, Wall filter adjustable, Base line adjustable, PRF adjustable, AIO Auto image optimization, I-Zoom: Instant full screen image, I-Image: intelligent optimization, MBF: Multi Beam Former, SA: Synthetic Aperture Ultrasonic imaging. I-clear: Speckle Noise Reduction, CDF: Continuous Dynamic Focusing
4.General measurement: Normal, MSK, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular
5.Normal measurement: Volume, V3L, STD_S, Area Trace, M-time, MHR, D Time, DV, D Common, D Auto, Area, Angle, Cross Line, STD D, Parallel Line, M-dist, MV, D HR, DA, D Trace
6.ABD packages: ABD, Aorta, R_Kidney & L_Kidney, Bladder, Prostate
7.OB Packages: Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI
8.Pelvic Packages: Uterus, Rt/Lt – Ovary, Rt/Lt-Follicle
9.Urology packages: Rt/Lt- kidney measurement, Bladder, Prostate,Rt/Lt_Testicle
10.Small Parts: Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast
11.Vascular: Stenosis D, senosis A, Intima, Arterial, Venous
12.MSK: Distance, Area, Hip_Angle
13.Scanning depth: ≥260mm
14.Probe elements: 80
15.Gray : 256
16.Cine loop: Automatically & manually
17.Image storage format: BMP, JPEG, PNG, DICOM(Option)
18.Input/output ports: Video Port, S-Video Port, Remote Port, LAN1/2 Port, VGA
19.Optional probes: 3.5Mhz convex probe, 7.5Mhz linear probe, 6.5Mhz Trans-vaginal Probe, Trolley, Printers, Aluminum case

Chongqing Vision Star S&T Co., Ltd. is a leading supplier of ultrasound machines, offering a wide range of products for both human and veterinary use. Our product line includes color doppler ultrasound machines, black and white ultrasound machines, and more.

Our ultrasound machines are designed to provide high-quality imaging for accurate diagnosis and treatment planning. The color doppler ultrasound machines offer detailed and real-time imaging of blood flow, making them ideal for cardiovascular and obstetric applications. On the other hand, the black and white ultrasound machines provide clear and precise images for a wide range of medical examinations.

With a commitment to innovation and quality, Chongqing Vision Star S&T Co., Ltd. ensures that our ultrasound machines meet the highest standards in the industry. Whether it is for human healthcare or veterinary medicine, our products are trusted by professionals worldwide for their reliability and performance.

Choose Chongqing Vision Star S&T Co., Ltd. for advanced ultrasound technology that delivers accurate and efficient results in medical imaging.
