UCD60T 4D Trolley Color Doppler Ultrasound Scanner

UCD60T 4D Trolley Color Doppler Ultrasound Scanner

Uses new-generation technology to provide customers with a fully functional new platform, superior image quality, simple and efficient workflow, and an easy-to-use high-end ultrasound system to satisfy users of any level, ensuring accurate diagnosis.

Video:

Feature:

1.128 elements array, 21.5 inch LED medicinal monitor + 13.3 inch touch screen.
2.Lifting and rotating platform with adjustable height and movable rotation function.
3.Spectrum Envelope Function: Real-time, manual, etc. optional modes
4.Auto IMT measurement: optimizing the angle of measurement automatically
5.Puncture Enhancement function: iNeedle puncture enhancements with built-in ultrasound teaching software
6.ST-U Technology Platform: CPU+GPU dual-core processing architecture; Clearer imaging, faster response
7.New technology probes, ADC+beam reconstruction: 10x faster response time, performance increased by 60%
8.Rich measurement package
9.PDI, PW, CW, 2D, 3D, 4D , TDI, Auto IMT/NT, Elastography, Puncture enhancement, Panoramic, Trapezoid Imaging, Color M, Anatomical M mode

Main specifications and system of cart type color Doppler ultrasound:
1.Ultrasonic host operating system: Windows operating system
2.Applications：Abdomen, obstetrics, gynecology, heart, urinary system, small organs, superficial, blood vessels, pediatrics, newborns, musculoskeletal
3.Probes：Convex probe, Tran-vaginal probe, Linear probe, Micro-convex probe, Cardiac probe,4D Volume probe
4.Applications and report：Abdominal,OB,GYN,Cardiac,Urinary,Small Parts,Superficial, Vascular, Pediatrics, Advanced measurement software packages, report software packages, case management software packages, etc.
5.carotid artery intima measurement thickness(IMT）
6.Automatic spectral envelope measurement
7.Full digital transmission and reception of beam synthesizer

System：
1.Color Doppler imaging（C）
2.Pulse Doppler Imaging（PW）
3.Coherent Contrast imaging（CCI）
4.Continuous wave Doppler imaging（CW）
5.B/C/D Real-time three synchronous imaging
6.Power Doppler imaging（PDI）
7.Direct power Doppler imaging（DPDI）
8.M mode imaging
9.Anatomic M mode imaging
10.Color Doppler M mode imaging
11.Tissue Doppler imaging（TDI）
12.Strain rate imaging (SRI)
13.Tissue harmonic imaging（THI）
14.Fusion harmonic imaging（FHI）
15.Speckle Reduce imaging（SRI）
16.Panoramic imaging
17.Deflection imaging
18.Trapezoidal imaging
19.Free hand 3D
20.Real time 3D imaging（3D/4D）

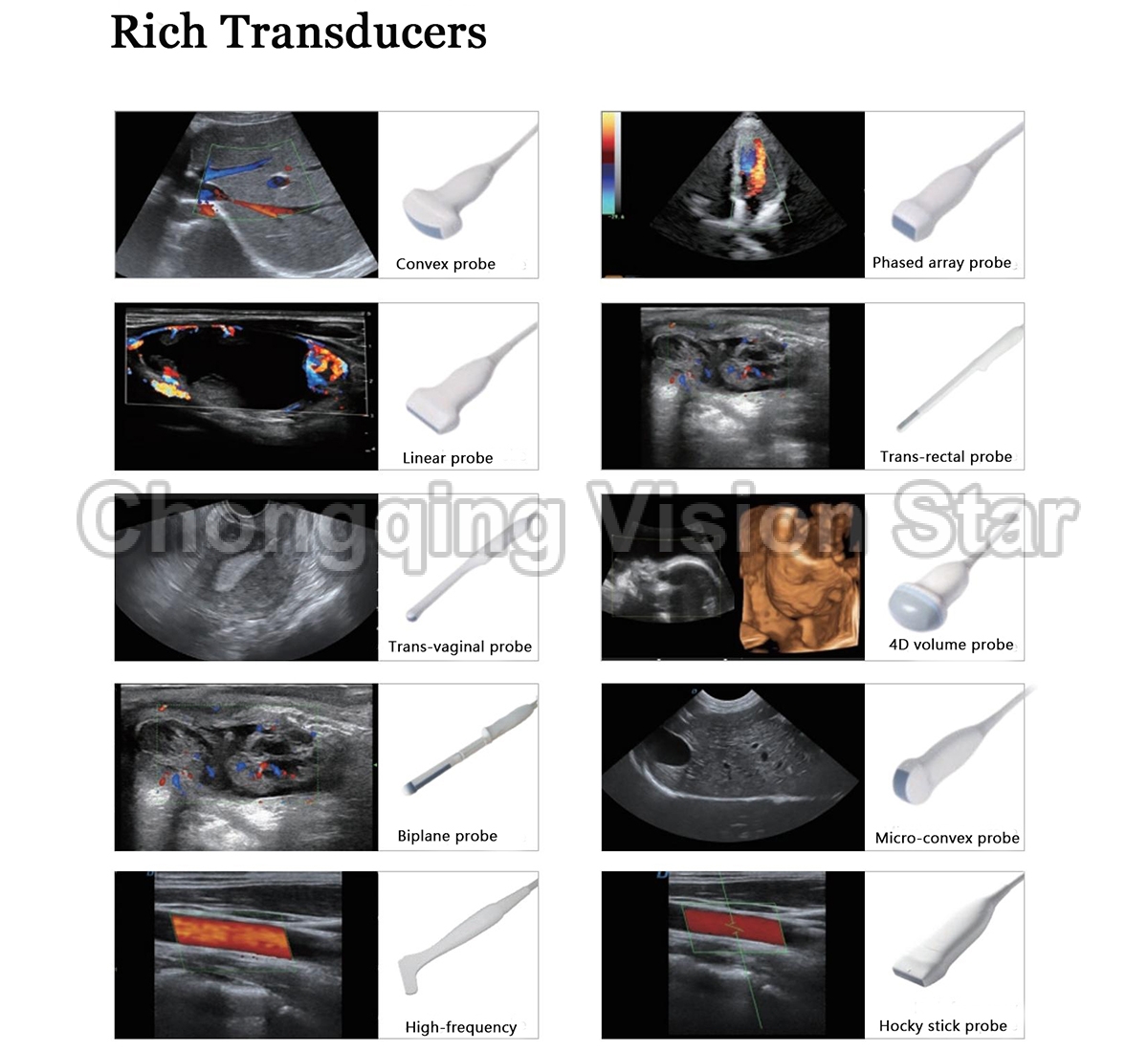

Probes:
1.Convex probe Fundamental Frequency：2.0MHz/2.3MHz/2.5MHz/3.0MHz/3.5MHz/4.0MHz/4.6MHz/5.0MHz/5.4MHz, Harmonic Frequency：4.0MHz/4.6MHz/5.0MHz，
2.Linear probe Fundamental Frequency：4.0MHz/4.6MHz/5.0MHz/6.0MHz/7.0MHz/8.0MHz/9.2MHz/10.0MHz/12.0MHz/13.3MHz，Harmonic Frequency：8.0MHz/9.2MHz/10.0MHz,
3.Trans-vaginal probe Fundamental Frequency：3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz/10.0MHz，Harmonic Frequency：6.0MHz/7.0MHz/8.0MHz，
4.Micro-convex probe Fundamental Frequency：3.0MHz/3.5MHz/4.0MHz/5.0MHz/5.4MHz/6.0MHz/7.0MHz/8.0MHz，Harmonic Frequency：6.0MHz/7.0MHz/8.0MHz，
5.Cardiac probe Fundamental Frequency：1.7MHz/1.9MHz/2.1MHz/2.5MHz/3.0MHz/3.4MHz/3.8MHz/4.2MHz/5.0MHz，Harmonic Frequency：3.4MHz/3.8MHz/4.2MHz，
6.4D Volume probe Fundamental Frequency：2.0MHz/2.5MHz/3.0MHz/3.3MHz/3.7MHz/4.0MHz/5.0MHz/6.0MHz，Harmonic Frequency：4.0MHz/5.0MHz/6.0MHz，
